OMRON Robotics

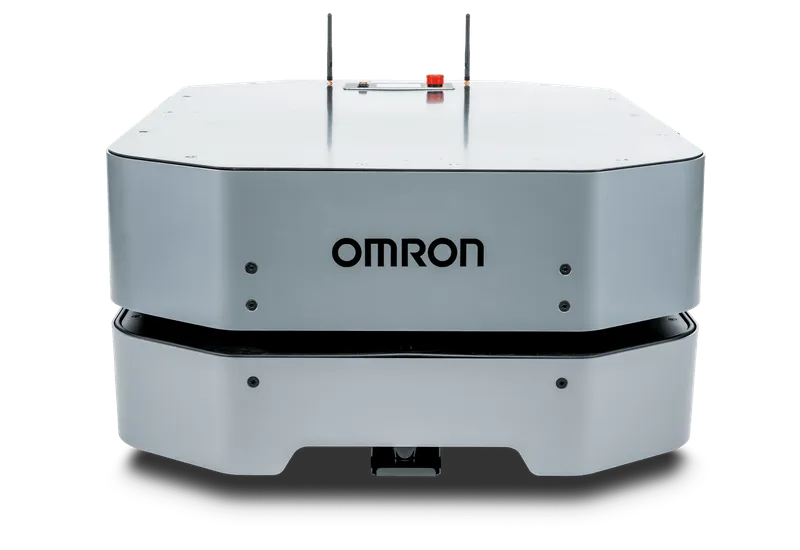

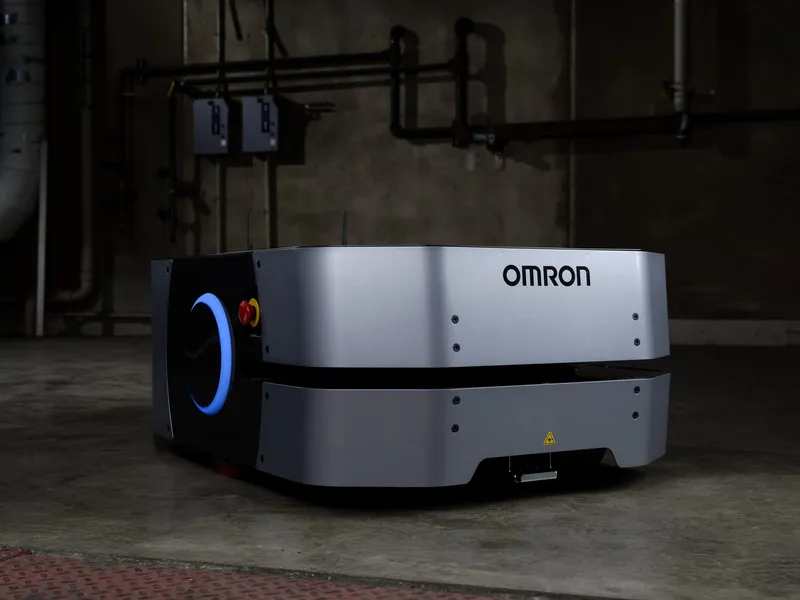

LD-250
A 250 kg-payload autonomous mobile robot that navigates without floor markers, using onboard SLAM to move material safely through dynamic factory environments.
Payload
250 kg
Reach
—
Repeatability
—
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 250 kg
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,350 mm/s
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 130 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- mobile-base
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- Onboard Li-ion
- Controller
The control cabinet / unit that runs the robot.
- Onboard SLAM core
- Battery
Onboard battery capacity (mobile robots). Higher means longer runtime.
- 1,280 Wh
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- EN 1525, ISO 3691-4
- Collab features
Collaborative safety functions: power-force-limiting, speed-and-separation monitoring, hand-guiding, safety-rated stops.
- speed-separation-monitoring, safety-rated-stop
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- graphical-blockly
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- EtherNet/IP
